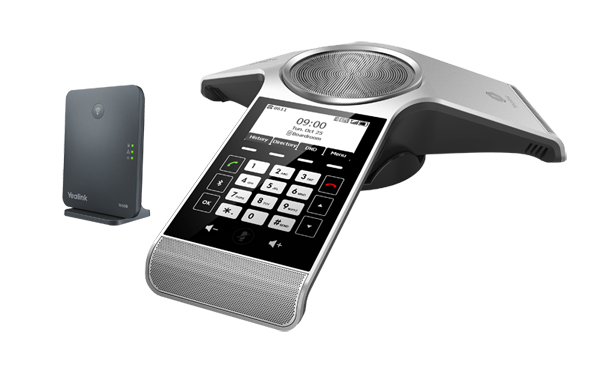

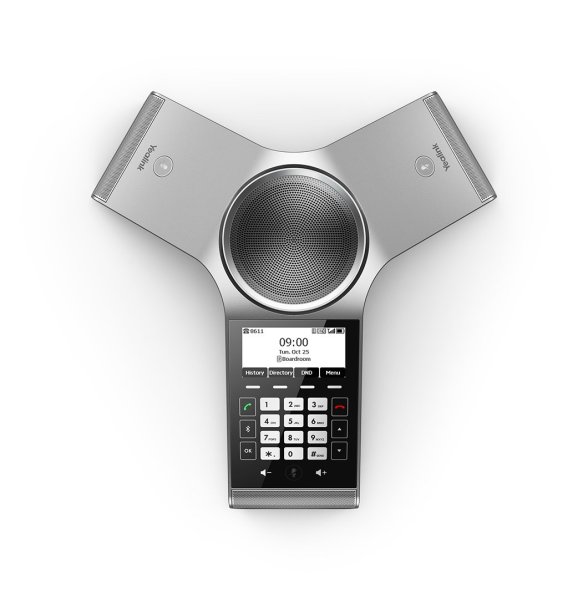

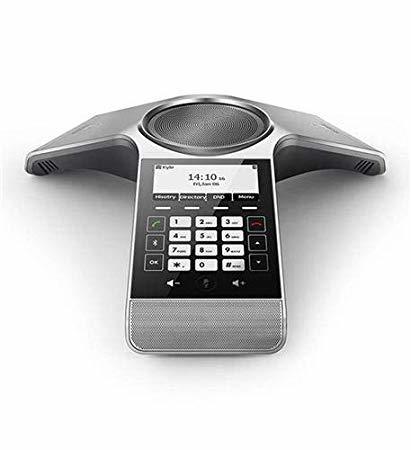

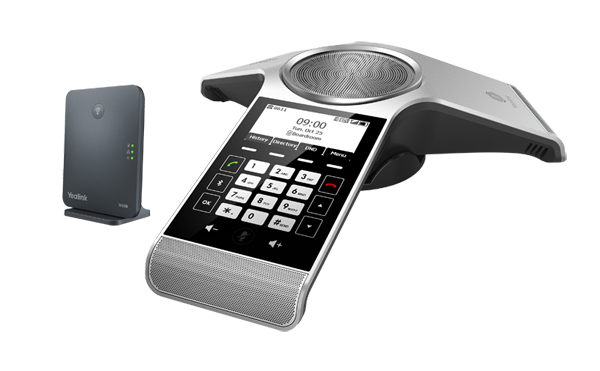

Yealink CP930W Kablosuz Konferans Telefonu-Baz İstasyonlu

•  Up to 8 simultaneous calls

• Up to 8 handset (CP930W works as a handset)

• Up to 8 SIP accounts (only one SIP account on CP930W)

• Up to 5 repeaters per base station (RT20/RT20U)

• Up to 6 repeaters per base station (RT30)

• Paging, intercom, dial plan

• Call hold, call transfer, 5-way conference (CP930W only)

• Switching between calls

• Call waiting, mute, silence, DND

• Caller ID with name and number

• Anonymous call, Anonymous call rejection

• Call forward (always/busy/no answer)

• Speed dial, voicemail, redial

• Message Waiting Indication (MWI)

• Music on hold (server-based)

• Local phonebook for up to 800 entries (store in the

  base, 100 entries in each handset)

• Remote phonebook/LDAP

• Phonebook search/import/export

• Call history (all/missed/placed/received)

• Direct IP call without SIP proxy

• Reset to factory, reboot

• Keypad lock, emergency call

• Broadsoft directory, BroadSoft call log

• Broadworks feature key synchronization

• Shared Call Appearance (SCA)

  Management

  • Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS

  • Auto-provision with PnP

  • Handset upgrade: OTA (Over-The-Air)/USB port

  • Configuration: browser/phone/auto-provision

  • Trace package and system log export

    Audio Features

  • Full-duplex speakerphone

  • Receiver volume control

  • Ringer volume control

  • Multiple advisory tones

  • Acoustic warning for low battery status

    B

    Security Slot

    C

    Micro USB Port

• DTMF
• Wideband codec: Opus, AMR-WB (optional), G.722

• Narrowband codec: PCMU, PCMA, G.726, G.729,

iLBC
• VAD, CNG, AGC, PLC, AJB
• Support VQ-RTCPXR (RFC6035), RTCP-XR

Network Features

• SIP v1 (RFC2543), v2 (RFC3261) • SNTP/NTP
• VLAN (802.1Q and 802.1P)
• 802.1x, LLDP, PPPoE

• STUN Client (NAT Traversal)
• UDP/TCP/TLS
• IP assignment: static/DHCP
• Support outbound proxy server backup

Security

• Open VPN
• Transport Layer Security (TLS)
• HTTPS (server/client), SRTP (RFC3711)
• Digest authentication
• Secure configuration file via AES encryption
• Support SHA256/SHA512/SHA384
• Three-level configuration mode: Admin/Var/User

DECT

• Frequency bands:
1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)

• DECT Standards: CAT-iq2.0

Interface

• 1 x RJ45 10/100M Ethernet port(W60B) • Power over Ethernet (IEEE 802.3af), Class 1

(W60B)

• Sensitive touch keypad • 25 total keys:

4 soft keys, off-hook key, on-hook key, 12-key numerical keypad, Bluetooth, mute, volume keys,

2 navigation keys, OK key
• Multilingual user interface
• Three LED indicators on W60B:

- 1 x Registration LED
- 1 x Network Status LED - 1 x Power Indicator LED

• External Yealink AC adapter:
AC 100-240V Input and DC 5V/600mA Output

(W60B)
AC 100~240V input and DC 12V/1A output

(CP930W)
• Color: CP930W:Space Silver; Base: Classic Grey • Phone size: 307.8mm*298.5mm*66.9mm
• Base station size: 130mm x 100mm x 25.1mm
• Charging cradle size: 110mm*127mm*21.5mm • Operating humidity: 10~90%
• Operating temperature: -0~+40°C (+32~104°F)

Package features

• Package content:
- Yealink CP930W DECT conference phone

(built-in battery)
- Charger cradle
- W60B Base Station
- Base Stand
- Two Yealink Power Adapters - Ethernet Cable
- Quick Start Guide

• Qty/CTN: 5 PCS
• N.W/CTN: 9.48 kg
• G.W/CTN: 10.51 kg
• Giftbox size: 336mm*364mm*112mm • Carton Meas: 587mm*376mm*350mm

Physical Features

• Indoor Range: 50m (in ideal conditions) Compliance • Outdoor Range: 300m (in ideal conditions)
• Standby Time: 360 hours (in ideal conditions)
• Talk Time: 24 hours (in ideal conditions)
• 3.1" 248x120-pixel graphical LCD with backlight
