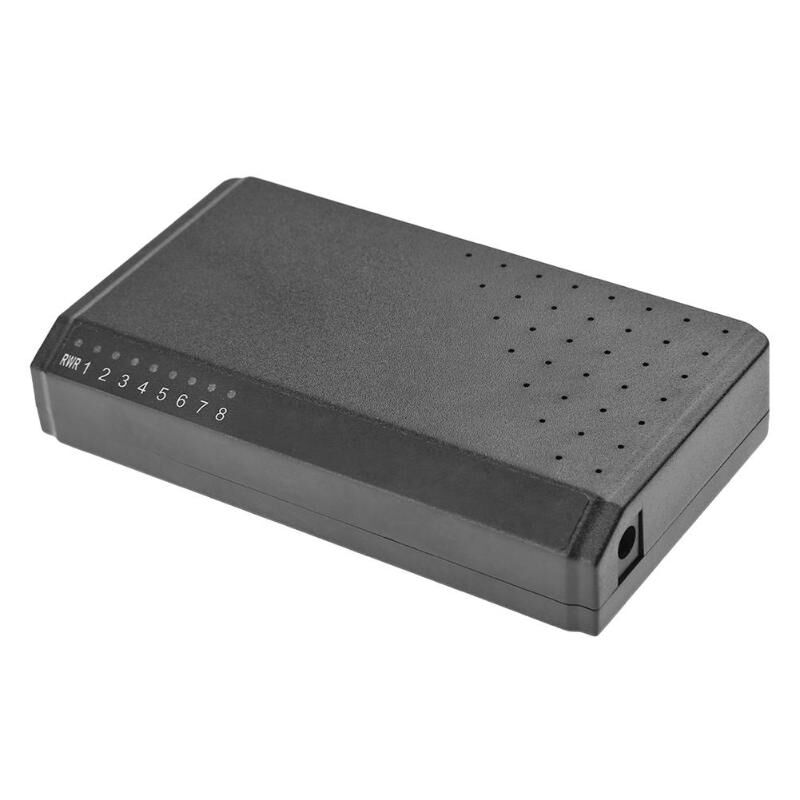

Winet Reverse Poe Switch 6+2 - 10/100 Mbit

 8 PORT  Reverse PoE Injector - Switch

Winet Reverse Switch  6 Port PoE In - Kısa devre korumalı , 2 Port Data olarak çalışmaktadır.
Ürün  1-6 Portları üzerinden PoE In girişi yapabilmekte ve 1-6 Portları üzerinden PoE Out olarak çalışmaktadır .  ( 6-57 ) Volt voltaj giriş aralığına sahiptir. Ürün ile birlikte adaptör gelmemektedir. Reverse PoE Özelliği nedeni ile Enerjisini  1-6 port üzerinden almaktadır.

Teknik Özellikleri :

Standard: IEEE 802.3/IEEE 802.3U/IEEE 802.3z/IEEE 802.3x/IEEE 802.1P ANSI/IEEE STD 802.3 10/100M Adaptive
Agreement: CSMA / CD, TCP / IP
Cables: unshielded twisted pair (UTP) or shielded twisted pair (STP), CAT 5 or Cat6 categories, maximum length 100m

Fiber optic cable: optical wavelength: 850nm / 1310nm / 1550nm
Single mode single fiber: 25-120KM
Single mode double fiber: 25-120KM

Port: 6pcs 10/100M Internet access, using RJ45 connector to connect to two 10/100M Internet access, RJ45 connector (uplink).
Network sequence: 4 chips 100M 1 orange white 2 Orange 3 Green white 6 green
POE mode: 3-8 ports support constrained POE non-protocol power supply 4 Blue 5 blue white power positive (+), 7 Brown White 8 Brown negative (-), need to be used with cable separator

Connection and transmission mode: 100M net electric hybrid power
Uplink transmission: 100M RJ45 Internet access
Flow control: full duplex 1EEE802.3x flow control; half duplex back pressure flow control.
Transmission mode: store and forward

Exchange level: 2 level
After bandwidth: 1G
MAC address format: 4K
MAC address research: automatic update

Delay rate: 9.6us
BER:<1000000000> Power input range: DC 6V - 56V
Machine power consumption: <5W>

MTBF:10 million hours
Working temperature: -40~ -70℃
Storage temperature: -40~ -80℃

Humidity: 5%~90% without condensation
Product size: 125*70*25mm/4.92*2.75*0.98''
