Synway SMG1000D-16O 16 Fxo Voip Gateway

Product Model

SMG1000-D series (2~32ch FXS/FXO configurable)

SMG1000-D4S/D4O/D2S2O up to 4ch SIP channels

SMG1000-D8S/D8O/D4S4O up to 8ch SIP channels

SMG1000-D16/D16O/D8S8O up to 16ch SIP channels

SMG1000-D24S up to 24ch SIP channels

SMG1000-D32/D32O/D16S16O  up to 32ch SIP channels

Session Capacity

Max. 32 SIP channels

Network Interface

Network Interface 10/100 Base-T Ethernet LAN port

Connector 2 shielded female RJ-45 jack for LAN

OpenVpn

Support

VoIP Protocols

TLS / SRTP
OpenVpn
SIP V2.0 (RFC 3261,3262,3264)
IMS/3GPP
SDP
REFER (RFC 3515)
RTP/RTCP
STUN
ARP/RARP (RFC 826/903)
SNTP (RFC 2030)
DHCP/PPPoE
TFTP/HTTP/HTTPS

FoIP Protocol

T.38/Pass-through, up to 14.4kbps T.38 FoIP   transcode fax from T.30 fax protocol(supporting V.17) modulation schemes, to T.38 for transmission over a packet network

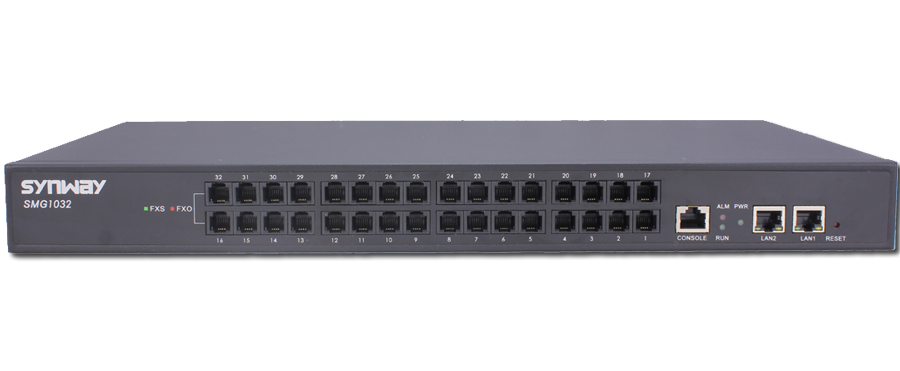

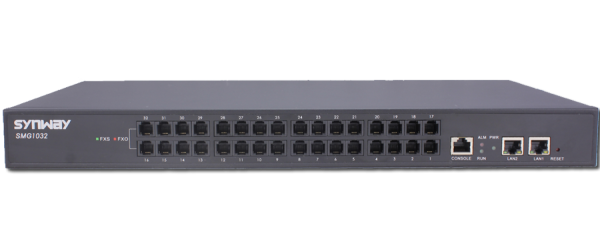

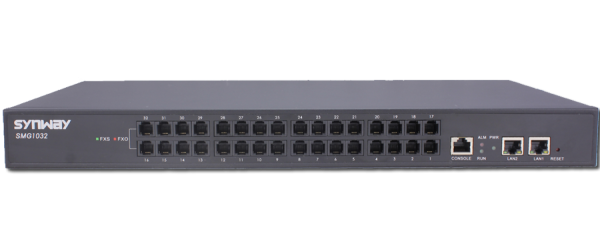

Temsili resim


Voice Ability

G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
Comfort Noise Generation(CNG)
Echo Cancellation(G.168)
DTMF mode: Signal/RFC2833/INBAND
Silence suppression with comfort noise
G.168 automatic echo cancellation
Call Progress Analysis (CPA), including Positive Voice Detection, Positive Answering Machine Detection (PAMD), DTMF detection, and fax tone detection
Manageable based call routing TDP-IP/IP-TDM.
Restrict unwanted calls with list of denied numbers.

Network Features

Static IP, PPPoE, DHCP Client
IPv4, IPv6
Static/dynamic ARP
Traffic Shaping
DIFFServ, ToS

Software Features

Web/Telnet ACL
Action URL
PPPoE/IPv4/IPv6
Digitmap
Bandwidth Optimization
Routing Rules based Prefixes
Caller/Called Number Manipulation
Open-standard SIP support and register to multiple SIP proxy servers.

Supplement service

Call waiting
Blind Transfer
Attend Transfer
Call forward on Busy
Call forward on No Reply
Unconditional Call Forward
Hotline
Call hold
DND
3-way conference
Call budgeting based on allocated amount, minutes and call count
Completely non-blocking architecture and Scalable System.
Hotline extension setting.

Operating temperature range

-10 ℃  ~ 55 ℃

Storage temperature range

-20 ℃ ~85 ℃

Physical Dimensions

(32FXS gateways)

L*W*H  440(mm)*267(mm)*44(mm)

Weight  3.5kg

Reliability/Warranty

3years: The first year exchange for free. On the Second&Third free to repair.
