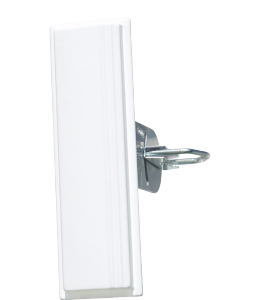

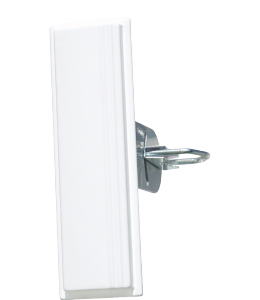

SECTOR V70 V:12dBi/70° / 2.4»2.5GHz IS-G12-F2425-A70-V
4.262,32 ₺
KdvDahil
* 517,68 ₺ den
başlayan taksitlerle!
başlayan taksitlerle!
4.134,45 ₺
(%3,00 havale indirimi)
Toplu Satın Al
Değerli Müşterimiz ;
Koli Bazlı ve Toptan Olarak Almak İstediğiniz Ürünlere Bu Ekrandan Özel Teklif Alabilirsiniz.
Vereceğiniz Bilgiler Doğrultusunda Satın Alma Uzmanlarımız Size Özel Fiyat Teklifi Verecektir.
SECTOR are the professional antennas designed for the construction of the base stations with large capacities. Antennas are capable of tilting, and thus can be used in the sector of radio cells, with a strong, focused signal. In the urban poor, high gain and beam allows coverage of large areas and providing users with a good quality signal at a distance of many miles. High quality housing allows operation in harsh weather conditions while maintaining the highest performance.
Key benefits
- Solid casing
Features
- Sector coverage
- Sector optimalization
compliance
ETSI EN 302 326-3 (CE)
compliant
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant
electrical
Frequency (min)
2 360MHz
Frequency (max)
2 500MHz
Gain
12dBi
VSWR (max)
1.90:1
Polarization
Vertical
Half Power Beam Width (-3dB) - horizontal
72°
Half Power Beam Width (-3dB) - vertical
20°
FBR (Front/Back Ratio)
>30dB
XPD (Cross Polarization Discrimination)
>20dB
DC Ground
yes
Impedance
50Ω
mechanical
Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
104x338x23mm
Weight (incl. mount)
0.60kg
enviromental
Enviroment
Outdoor
Windload
47N (@170km/h)
