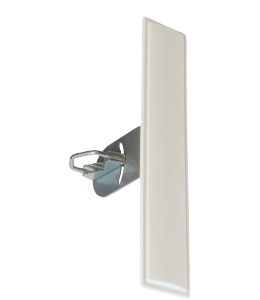

SECTOR H60 17dBi/60° / 5.2-5.8GHz IS-G17-F5258-A60-H
5.477,40 ₺
KdvDahil
* 665,26 ₺ den
başlayan taksitlerle!
başlayan taksitlerle!
5.313,08 ₺
(%3,00 havale indirimi)
Toplu Satın Al
Değerli Müşterimiz ;
Koli Bazlı ve Toptan Olarak Almak İstediğiniz Ürünlere Bu Ekrandan Özel Teklif Alabilirsiniz.
Vereceğiniz Bilgiler Doğrultusunda Satın Alma Uzmanlarımız Size Özel Fiyat Teklifi Verecektir.
SECTOR are the professional antennas designed for the construction of the base stations with large capacities. Antennas are capable of tilting, and thus can be used in the sector of radio cells, with a strong, focused signal. In the urban poor, high gain and beam allows coverage of large areas and providing users with a good quality signal at a distance of many miles. High quality housing allows operation in harsh weather conditions while maintaining the highest performance.
compliance
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant
electrical
Frequency (min)
5 150MHz
Frequency (max)
5 850MHz
Gain
17dBi
VSWR (max)
2.00:1
Polarization
Horizontal
Half Power Beam Width (-3dB) - horizontal
60°
Half Power Beam Width (-3dB) - vertical
6°
FBR (Front/Back Ratio)
>24dB
XPD (Cross Polarization Discrimination)
>27dB
DC Ground
yes
Impedance
50Ω
mechanical
Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
427x83x15mm
Weight (incl. mount)
0.58kg
enviromental
Enviroment
Outdoor
Windload
47N (@170km/h)
Bu ürüne ilk yorumu siz yapın!
