SECTOR H60 14dBi/60° / 2.4-2.5GHz IS-G14-F2425-A60-H
3.386,13 ₺
KdvDahil
* 411,26 ₺ den
başlayan taksitlerle!
başlayan taksitlerle!
3.284,55 ₺
(%3,00 havale indirimi)
Toplu Satın Al
Değerli Müşterimiz ;
Koli Bazlı ve Toptan Olarak Almak İstediğiniz Ürünlere Bu Ekrandan Özel Teklif Alabilirsiniz.
Vereceğiniz Bilgiler Doğrultusunda Satın Alma Uzmanlarımız Size Özel Fiyat Teklifi Verecektir.

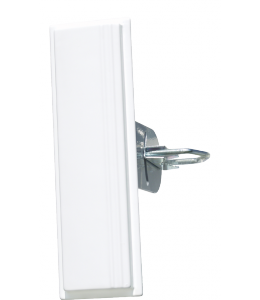

SECTOR HP 14dBi/2.4GHz is a sectoral antenna working in HORIZONTAL polarization and has the breakthrough design. Ideally suited where there is a need to build a base station with a large capacity, both on the cities where there is high density of base stations operating in the vertical polarization and in the countryside areas.
Antenna is constructed in microstrip technology and surpasses most of the parameters of slotted waveguide antennas available in the market. Small size and light weight allow it to use the discrete and elegant construction of base stations in the 2.4GHz band.
Key benefits
- Radiators Protection
Features
- Adjustable mounting
- Sector coverage
- Sector optimalization
compliance
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant
electrical
Frequency (min)
2 400MHz
Frequency (max)
2 500MHz
Gain
14dBi
VSWR (max)
1.50:1
Polarization
Horizontal
Half Power Beam Width (-3dB) - horizontal
64°
Half Power Beam Width (-3dB) - vertical
20°
FBR (Front/Back Ratio)
>30dB
XPD (Cross Polarization Discrimination)
>20dB
DC Ground
yes
Impedance
50Ω
mechanical
Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
104x338x23mm
Weight (incl. mount)
0.60kg
enviromental
Enviroment
Outdoor
Windload
47N (@170km/h)
