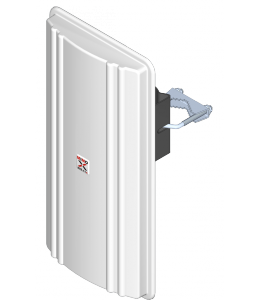

SECTOR H:17dBi/60° V:17dBi/80° / 5.2-5.8GHz / MIMO HV IS-G17-F5258-A6080-HV-M
0,00 ₺
KdvDahil
0,00 ₺
(%3,00 havale indirimi)
Fiyat Sorunuz
Fiyat Sorunuz
New sector antenna for base stations in the MIMO technology developed for use with radio equipment operating in the 802.11n standard that use MIMO technology. Antenna has two connectors, are relatively light and compact allowing you to save space on the mast.
Key benefits
- Radiators Protection
Features
- MIMO
- Sector coverage
- Sector optimalization
compliance
ETSI EN 302 326-3 (CE)
compliant
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant
electrical
Frequency (min)
5 200MHz
Frequency (max)
5 800MHz
Gain
17dBi, 17dBi
VSWR (max)
2.00:1
Polarization
Horizontal and Vertical
Half Power Beam Width (-3dB) - horizontal
60°
Half Power Beam Width (-3dB) - vertical
80°
FBR (Front/Back Ratio)
>26dB
Port to Port Isolation:
>44dB
DC Ground
yes
Impedance
50Ω
mechanical
Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
451x227x40mm
Weight (incl. mount)
1.50kg
enviromental
Enviroment
Outdoor
Windload
137N (@170km/h)
