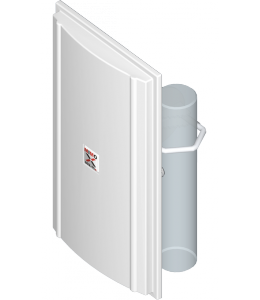

SECTOR H:14dBi/60° V:12dBi/70° / 2.4-2.5GHz / MIMO HV IS-G1412-F2425-A6070-HV-M
5.105,89 ₺
KdvDahil
* 620,14 ₺ den
başlayan taksitlerle!
başlayan taksitlerle!
4.952,71 ₺
(%3,00 havale indirimi)
Toplu Satın Al
Değerli Müşterimiz ;
Koli Bazlı ve Toptan Olarak Almak İstediğiniz Ürünlere Bu Ekrandan Özel Teklif Alabilirsiniz.
Vereceğiniz Bilgiler Doğrultusunda Satın Alma Uzmanlarımız Size Özel Fiyat Teklifi Verecektir.
New sector antenna for base stations in the MIMO technology developed for use with radio equipment operating in the 802.11n standard that use MIMO technology. Antenna has two connectors, are relatively light and compact allowing you to save space on the mast.
Key benefits
- Radiators Protection
Features
- MIMO
- Sector coverage
- Sector optimalization
compliance
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant
electrical
Frequency (min)
2 400MHz
Frequency (max)
2 500MHz
Gain
14dBi, 12dBi
VSWR (max)
1.50:1
Polarization
Horizontal and Vertical
Half Power Beam Width (-3dB) - horizontal
60°
Half Power Beam Width (-3dB) - vertical
70°
FBR (Front/Back Ratio)
>30dB
Port to Port Isolation:
>37dB
DC Ground
yes
Impedance
50Ω
mechanical
Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
340x194x25mm
Weight (incl. mount)
0.84kg
enviromental
Enviroment
Outdoor
Windload
88N (@170km/h)
