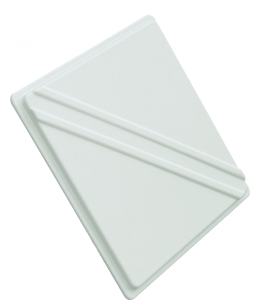

PANEL 23dBi / 5.2-5.8GHz IP-G23-F5258-HV
0,00 ₺
KdvDahil
0,00 ₺
(%3,00 havale indirimi)
Fiyat Sorunuz
Fiyat Sorunuz
Antenna PANEL 23 is one of the most powerful antenna for 5GHz band. Specially designed to support the full range of IEEE 802.11a standard. In the whole band has a good match that provides high data transfer rates and link stability even when working with dynamic channel selection.
---
PANEL is a series of panel directional antennas, designed for installation on both the outside and inside of buildings. PANEL antenna series are constructed in microstrip technology which ensures excellent repeatability of the electrical parameters of the antenna in the production process. The modular design ensures perfect fitting what guarantee reliable performance in all weather conditions and constant high quality. Small in size, weight and aesthetic appearance makes them a discreet and elegant solution for any wireless subscriber.
Features
- Adjustable mounting
- Adjustable polarization
compliance
ETSI EN 302 326-3 (CE)
compliant
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant
electrical
Frequency (min)
5 150MHz
Frequency (max)
5 850MHz
Gain
23dBi
VSWR (max)
1.60:1
Polarization
Horizontal or Vertical
Half Power Beam Width (-3dB) - horizontal
10°
Half Power Beam Width (-3dB) - vertical
10°
FBR (Front/Back Ratio)
>35dB
XPD (Cross Polarization Discrimination)
>24dB
DC Ground
yes
Impedance
50Ω
mechanical
Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
315x315x19mm
Weight (incl. mount)
1.12kg
enviromental
Enviroment
Outdoor
Windload
133N (@170km/h)
