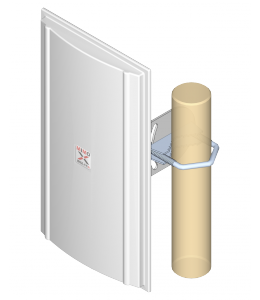

PANEL 19dBi / 5.0-5.9GHz / MIMO HV IP-G1919-F5059-HV-M
0,00 ₺
KdvDahil
0,00 ₺
(%3,00 havale indirimi)
Fiyat Sorunuz
Fiyat Sorunuz
Directional antenna for base stations and client terminals in the MIMO technology prepared to work with radio equipment operating in the standard 802.11n that use MIMO technology. The antenna has two ports, is relatively lightweight and compact design saves space on the mast.
Key benefits
- Radiators Protection
Features
- MIMO
- Adjustable mounting
compliance
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant
electrical
Frequency (min)
5 000MHz
Frequency (max)
5 900MHz
Gain
19dBi, 19dBi
VSWR (max)
2.00:1
Polarization
Horizontal and Vertical
Half Power Beam Width (-3dB) - horizontal
16°
Half Power Beam Width (-3dB) - vertical
16°
FBR (Front/Back Ratio)
>30dB
XPD (Cross Polarization Discrimination)
>27dB
Port to Port Isolation:
>37dB
DC Ground
yes
Impedance
50Ω
mechanical
Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
191x340x25mm
Weight (incl. mount)
0.92kg
enviromental
Enviroment
Outdoor
Windload
87N (@170km/h)
