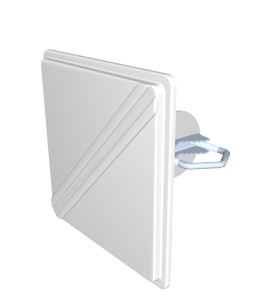

PANEL 19dBi / 5.0-5.9GHz IP-G19-F5059-HV
0,00 ₺
KdvDahil
0,00 ₺
(%3,00 havale indirimi)
Fiyat Sorunuz
Fiyat Sorunuz
PANEL is a series of panel directional antennas, designed for installation on both the outside and inside of buildings. PANEL antenna series are constructed in microstrip technology which ensures excellent repeatability of the electrical parameters of the antenna in the production process. The modular design ensures perfect fitting what guarantee reliable performance in all weather conditions and constant high quality. Small in size, weight and aesthetic appearance makes them a discreet and elegant solution for any wireless subscriber.
Key benefits
- Radiators Protection
Features
- Adjustable mounting
- Adjustable polarization
compliance
ETSI EN 302 326-3 (CE)
compliant
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant
electrical
Frequency (min)
5 000MHz
Frequency (max)
5 900MHz
Gain
19dBi
VSWR (max)
1.90:1
Polarization
Horizontal or Vertical
Half Power Beam Width (-3dB) - horizontal
16°
Half Power Beam Width (-3dB) - vertical
16°
FBR (Front/Back Ratio)
>30dB
XPD (Cross Polarization Discrimination)
>27dB
Max Composite Power
10W
DC Ground
yes
Impedance
50Ω
mechanical
Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
220x220x18mm
Weight (incl. mount)
0.65kg
enviromental
Enviroment
Outdoor
Windload
52N (@170km/h)
