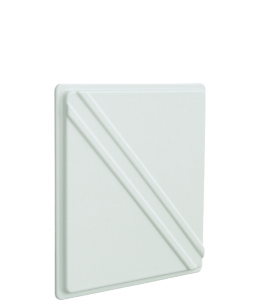

Panel 17 is a special antenna on the market.
What distinguishes it from other available antennas?
The antenna has a very wide operating band, reaching 300MHz working between 2300MHz and 2600MHz.
Regardless of the frequency in this band, the antenna has a very good match, and for networks operating in 802.11b VSWR less than 1.1:1 which is a extremely good result.
Key benefits
- Radiators Protection
Features
- Adjustable mounting
- Adjustable polarization
compliance
ETSI EN 302 326-3 (CE)
compliant
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant
electrical
Frequency (min)
2 310MHz
Frequency (max)
2 600MHz
Gain
17dBi
VSWR (max)
1.80:1
Polarization
Horizontal or Vertical
Half Power Beam Width (-3dB) - horizontal
20°
Half Power Beam Width (-3dB) - vertical
20°
FBR (Front/Back Ratio)
>35dB
XPD (Cross Polarization Discrimination)
>24dB
Max Composite Power
60W
DC Ground
yes
Impedance
50Ω
mechanical
Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
315x315x19mm
Weight (incl. mount)
1.12kg
enviromental
Enviroment
Outdoor
Windload
133N (@170km/h)
