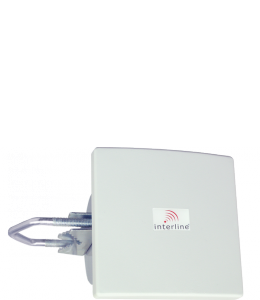

PANEL 14dBi / 5.2-5.8GHz IP-G14-F5258-HV
3.843,32 ₺
KdvDahil
* 466,79 ₺ den
başlayan taksitlerle!
başlayan taksitlerle!
3.728,02 ₺
(%3,00 havale indirimi)
Toplu Satın Al
Değerli Müşterimiz ;
Koli Bazlı ve Toptan Olarak Almak İstediğiniz Ürünlere Bu Ekrandan Özel Teklif Alabilirsiniz.
Vereceğiniz Bilgiler Doğrultusunda Satın Alma Uzmanlarımız Size Özel Fiyat Teklifi Verecektir.
PANEL is a series of panel directional antennas, designed for installation on both the outside and inside of buildings. PANEL antenna series are constructed in microstrip technology which ensures excellent repeatability of the electrical parameters of the antenna in the production process. The modular design ensures perfect fitting what guarantee reliable performance in all weather conditions and constant high quality. Small in size, weight and aesthetic appearance makes them a discreet and elegant solution for any wireless subscriber.
Key benefits
- Radiators Protection
Features
- Adjustable mounting
- Adjustable polarization
compliance
ETSI EN 302 326-3 (CE)
compliant
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant
electrical
Frequency (min)
5 200MHz
Frequency (max)
5 800MHz
Gain
14dBi
VSWR (max)
2.00:1
Polarization
Horizontal or Vertical
Half Power Beam Width (-3dB) - horizontal
30°
Half Power Beam Width (-3dB) - vertical
30°
FBR (Front/Back Ratio)
>20dB
XPD (Cross Polarization Discrimination)
>8dB
DC Ground
no
Impedance
50Ω
mechanical
Connector
N female, RP-SMA plug
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
115x115x18mm
Weight (incl. mount)
0.34kg
enviromental
Enviroment
Outdoor
Windload
18N (@170km/h)
