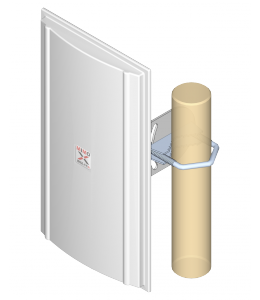

PANEL 14dBi / 2.4-2.5GHz / MIMO HV IP-G1414-F2425-HV-M
3.260,29 ₺
KdvDahil
* 395,98 ₺ den
başlayan taksitlerle!
başlayan taksitlerle!
3.162,49 ₺
(%3,00 havale indirimi)
Toplu Satın Al
Değerli Müşterimiz ;
Koli Bazlı ve Toptan Olarak Almak İstediğiniz Ürünlere Bu Ekrandan Özel Teklif Alabilirsiniz.
Vereceğiniz Bilgiler Doğrultusunda Satın Alma Uzmanlarımız Size Özel Fiyat Teklifi Verecektir.
Directional antenna for base stations and client terminals in the MIMO technology prepared to work with radio equipment operating in the standard 802.11n that use MIMO technology. The antenna has two ports, is relatively lightweight and compact design saves space on the mast.
Key benefits
- Radiators Protection
Features
- MIMO
- Adjustable mounting
compliance
ETSI EN 302 326-3 (CE)
compliant
2002/95/EC (RoHS)
compliant
2002/96/EC (WEEE)
compliant
electrical
Frequency (min)
2 400MHz
Frequency (max)
2 500MHz
Gain
14dBi, 14dBi
VSWR (max)
1.70:1
Polarization
Horizontal and Vertical
Half Power Beam Width (-3dB) - horizontal
30°
Half Power Beam Width (-3dB) - vertical
30°
FBR (Front/Back Ratio)
>20dB
XPD (Cross Polarization Discrimination)
>21dB
Port to Port Isolation:
>18dB
DC Ground
no
Impedance
50Ω
mechanical
Connector
N female
Mounting Diameter
ø 38…51mm
Dimensions (excl. mount)
191x340x25mm
Weight (incl. mount)
0.92kg
enviromental
Enviroment
Outdoor
Windload
87N (@170km/h)
