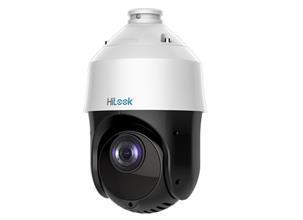

HiLook PTZ-N4215I-DE 2 MP IR PTZ Speed Dome IP Kamera

HiLook PTZ-N4215I-DE 2 MP IR PTZ Speed Dome IP Kamera

• 2 MP’ye kadar yüksek çözünürlük, 15x optik zoom • Renk: 0.005 Lux@ F1.6, B/W:0.001Lux@       F1.6

• H.265+/H.265 desteği• IP66, 120 dB WDR

• 100 m IR• 12 VDC ve PoE+• 24 gizlilik maskesi



IP Kamera
Image Sensor:		1/2.8" Progressive Scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:		Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:		Auto/Manual
BLC:		ON/OFF
HLC:		Support
Smart defog:		Support
WDR:		120dB
Shutter Time:		1/1 s to 1/30,000 s
Day& Night:		ICR
Digital Zoom:		16×
Privacy Masking:		24 privacy masks programmable
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		5 mm to 75 mm, 15× optical
Zoom Speed:		Approx. 2.4 s (optical lens, wide-tele)
Angle of View:		Horizontal field of view: 53.8° to 4.0° (wide-tele) Vertical field of view: 31.9° to 2.3° (wide-tele) Diagonal field of view: 60.4° to 4.6°(wide-tele)
Minimum Working Distance:		10 mm to 1500 mm (wide-tele)
Aperture Range:		F1.6 to F3.0

Pan & Tilt
Pan Speed:		Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s
Tilt Range:		-15°-90° (Auto Flip )
Tilt Speed:		Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		300
Patrol:		8 patrols, up to 32 presets for each patrol
Pattern:		4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:		Support
Park Action:		Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:		ON/OFF

Infrared
IR irradiation distance:		100m
IR irradiation angle:		Adjustable by zoom

Network
Ethernet:		10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional)
Max.Image Resolution:		1920×1080
Main Stream:		50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream:		50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:		50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)
Video Compression:		Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
ROI encoding:		Support 4 areas with adjustable levels
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users:		Up to 20 users
Three-Stream:		Support
Mini SD Card:		Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:		Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures:		User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Hik-Connect:		Support

General
Menu Language:		English
Power Supply:		12 VDC &POE (802.3at,class4)
Power Consumption:		Max.:18 W (IR Max.6 W)
Working Temperature/Humidity:		Working Temperature: -30°C to 65°C (-22°F to 149°F) Working Humidity: ≤ 90%
Protection Level:		IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions:		Φ 165.9 mm × 290 mm (Φ 6.53" × 11.42")
Weight (approx.):		Approx. 2 kg (4.41 lb)
