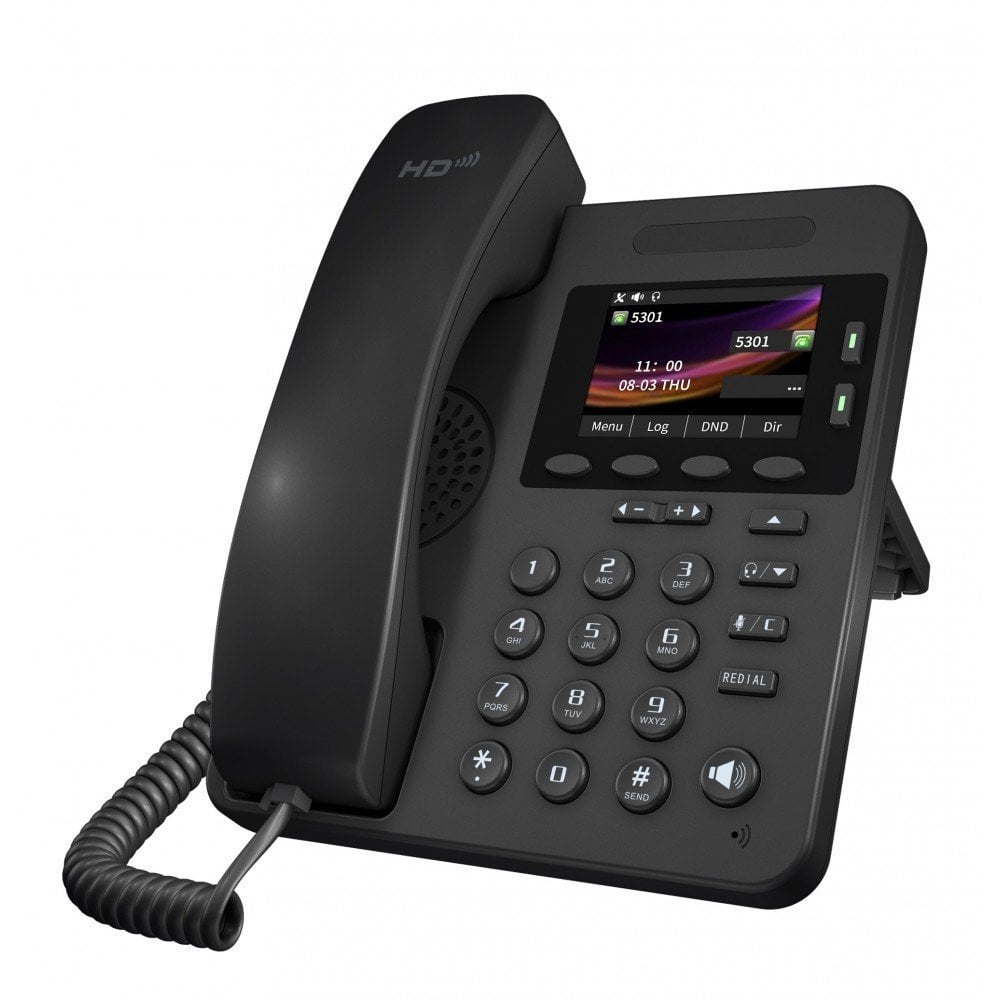

Escene ES270-PC IP Telefon

Escene ES270-PC giriş seviyesi IP Telefon, POE ve Renkli Ekran.


Adaptör dahil değildir.

Ürün Özellikleri

2 SIP Hesabı

2,4 ″ 320×240 HD renkli ekran

HD Ses

2 x RJ45 PoE, 1x RJ9

5 Programlanabilir tuş

Güç kaynağı 5V, 1A dahil değildir

Escene ES270-PC IP Telefon Ürün Detayları

Phone Features

2 SIP accounts, MWI(Line1)

Call hold, Call waiting, Call forward, Call return; Call transfer (blind/busy/ask)

Caller ID display, Redial, Mute, DND

Auto-answer, 3-way conferencing

Speed dial, SMS, Voicemail

Tone scheme, Volume control

Direct IP call without SIP proxy

Ring tone selection/import/delete

Black list, Hand-free indicator.

Call history: dialed/received/missed;

Soft keys programmable, Supports PC control

Multi-Language: Chinese,English,French,Russian,Italian,Polish,Portuguesa,Portuguesa-Brasil,Spanish,Turkish

Advanced Features

5 programmable keys

XML Phone Book search and input & output

Enterprise phone book(800 entries)

Personal Phonebook(300 entries)

LDAP phone book

IP PBX System Integration

Busy lamp field (BLF), BLF list

Bridged line appearance (BLA)

DND & Forward synchronization

Intercom, Paging, Music on hold

Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection

Network conference, Distinctive ring tone

Codes and Voice Features

Wideband Codec: G.722

Narrowband codec: G.711μ/A, G.726, G.729AB,iLBC

VAD, CNG, AEC, AGC, Full-duplex,

Security

VLAN QoS (802.1pq), SRTP

Transport Layer Security (TLS)

Digest authentication using MD5/MD5-sess

Secure configuration file via AES encryption

Encryption for configuration file

Phone lock for personal privacy protection

Admin/User 2-level configuration mode , LLDP, CDP

L2TP VPN tunneling protocol – added

Network Features

SIP v1 (RFC2543), v2 (RFC3261)

SIP connection: Proxy mode & Peering Points mode;

SRTP voice encryption(RFC3711)

Redundant server support

NAT Traversal: STUN mode

DTMF: In-Band, RFC2833, SIP Info, Auto

HTTP Web Management

IP Assignment: Static/DHCP/PPPoE

Bridge/Router mode for PC port

TFTP/DHCP/PPPoE client

Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server

Management

Auto-provision via FTP/TFTP/HTTP/HTTPS

Configuration: browser/phone/auto-provision

Trace package and system log export

Optional Feature

TR069，IPv6，HTTPS web management，802.1x，OPEN VPN

Physical Features

2.4inch 320×240 color screen with back light

25 keys, including 5 programmable keys,

2 LEDs: 2* account lights, including MWI(L1)

1* RJ9 handset port

2xRJ45 10/100M Ethernet ports

Power adapter: AC 100~240V input and

DC 5V/1A output

POE ,IEEE 802.3af,class 0(Option)

Power consumption: 1.5W

Net weight: 0.62kg

Dimension: 180x157x33mm

Operating humidity: 10~95%

Storage temperature: up to 60°C
