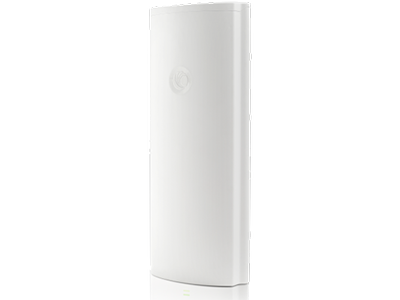

ePMP 3000 4x4 MU-MIMO Sector Antenna

Cambium Networks has deployed more than fi ve million radios around the world achieving unparalleled degrees of

scalability. Continuing the tradition of designing and manufacturing industry leading antenna solutions, the ePMP 3000

4X4 sector antenna encompasses all the key diff erentiations of the Cambium Antenna line and adds 4X4 Multi User MIMO

Capability. Designed to work in 5 GHz spectrum and 90 degree coverage, the antenna is an integral part of the ePMP

3000 Access Point and allows for Multi User MIMO Operation.

ePMP™ 3000

Sector Antenna

KEY DEPLOYMENT ADVANTAGES

• Frequency Re-use: Designed for ABAB channel re-use (two channels covering

four sectors), the sector antenna has a minimum 30 dB front to back ratio over

a wide rear facing aperture.

• Channel Flexibility: Consistent gain from 4.9 to 6.0 GHz allows the operator to

select a channel anywhere in the band and achieve the expected performance.

• Consistent Coverage: Excellent null fi ll capabilities of the antenna allow for broad

geographical coverage within a sector even near the base of the tower and the

edges of the sector.

• Designed for the Installer: Small, compact design, integrated ePMP radio mount

and GPS antenna integration.

• Predictable Performance: The sector antenna is integrated into Cambium

Networks LINKPlanner. The 3D model shows coverage at all elevations and

across the azimuth.

KEY SPECIFICATIONS:

• 17 dBi gain

• 4.9 to 5.97 GHz spectrum

• 30 dBi front to back ratio

• IP 65 ruggedization

Model Number C050910D301A

Frequency Range 4.9 GHz to 5.97 GHz

Gain 17 dBi

3 dB Beamwidth - Azimuth 70 degrees

3 dB Beamwidth - Elevation 6 degrees

Electrical Downtilt -2 degrees

Polarization 2X Horizontal, 2X Vertica

Model Number C050910D301A

Port-to-Port Isolation > 20 dB

Front-to-Back Ratio 30 dB

 Maximum Input Power 5 W

Input Impedance 50 ohms

Mounting Connectors 4 x RP SMA

Mounting Hardware Included for mounting to mast diameters 2” to 4” (5 cm to 10 cm)

-10 to +5 degree tilt

Hardware included to connect ePMP access point to back of antenna body

Physical Dimensions Antenna Body: 23.4” (H) x 9.6” (W) x 3.25” (D) (594 mm x 157 mm x 110 mm)

Weight Antenna Body: 8.0 lbs, 3.7 kg

w/ ePMP 3000 Access Point and Mounting Brackets: 13.8 lbs. 6.3 kg

Environmental IP65

Radome Material UV Protected ABS

Operating Temp -400C to 600C (-400F to 1400F)
