DR-UPS40, 24-29VDC RAY TİPİ UPS MODÜL
2.142,62 ₺
KdvDahil
* 260,23 ₺ den
başlayan taksitlerle!
başlayan taksitlerle!
2.078,34 ₺
(%3,00 havale indirimi)
Toplu Satın Al
Değerli Müşterimiz ;
Koli Bazlı ve Toptan Olarak Almak İstediğiniz Ürünlere Bu Ekrandan Özel Teklif Alabilirsiniz.
Vereceğiniz Bilgiler Doğrultusunda Satın Alma Uzmanlarımız Size Özel Fiyat Teklifi Verecektir.

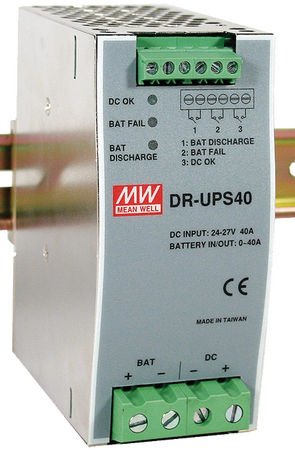

DR-UPS40, 24-29VDC RAY TİPİ UPS MODÜL
DC Giriş : 24~29VDC / 40.0A
Akü Giriş : 21~29VDC 0~40A
Şarj Akımı : 2.0A
Akü Tipi : 4Ah / 7Ah / 12Ah / 24V
Alarm : DC BUS OK, Battery Fail, Battery Discharge
Ebat : 55.5x125.2x100mm
Battery Controller for DIN Rail UPS System
Parallel Connection to DC BUS
Suitable for 24V system UP to 40A
Installed on DIN Rail TS35 / 7.5 or 15
Built-IN Battery Test Function
Battery Polarity Protection
Relay Contact singal output and Led Indicatior for DC BUS OK, Battery Fail , Battery Discharge
Cooling by free air convection
3 Year Warranty
Model : DR-UPS40
DC-INPUT-BUS :
DC Voltage - 24-29A
DC Rated Current : 40A
Battery Input Or Output : 21~29V
Current Range : 0~40A
Charge Current : 2A
External Battery Type : 4/7/12A - 24V
Function :
Relay Contaction Rating : 30VDC,1A
DC BUS OK : Led Information And Relay Contact
Battery Fail : Led Information and Relay Contact
Battery Discharge : Led Information and Relay Contact
Working
Tem : -20~ +70Cantigrad
Working Humidity : 20~90%RH
Virbation : Component : 10 ~ 500Hz, 2G 10min./1cycle, 60min. each X, Y, Z axes ; Mounting : Compliance to IEC600068-2-6
WITHSTAND VOLTAGE : Terminal-Chassis :0.5KVAC, Relay Contacts-Terminal :0.5KVAC
ISOLATION RESISTANCE Terminal-Chassis :>100M Ohms / 500VDC / 25℃/ 70% RH
EMC Emission : Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02
EMC IMMUNITY : Compliance to EN61000-4-2,3,4,5,6,8,11, heavy industry level, criteria A, EAC TP TC 020
MTBF : 161.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION : 55.5*125.2*100mm (W*H*D)
PACKING : 0.55Kg; 20pcs/12Kg/1.29CUFT
