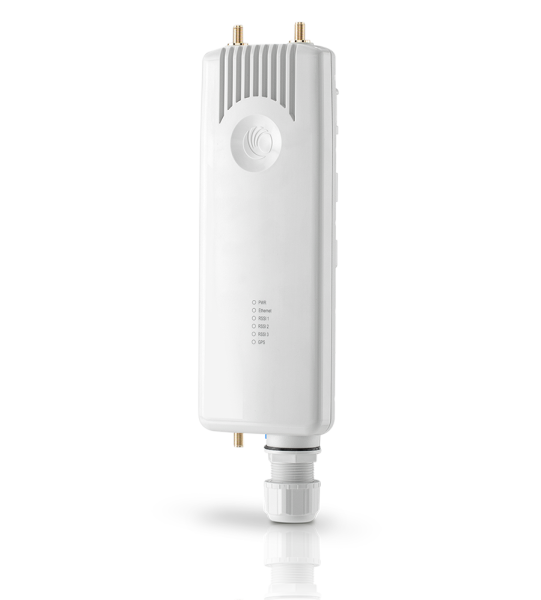

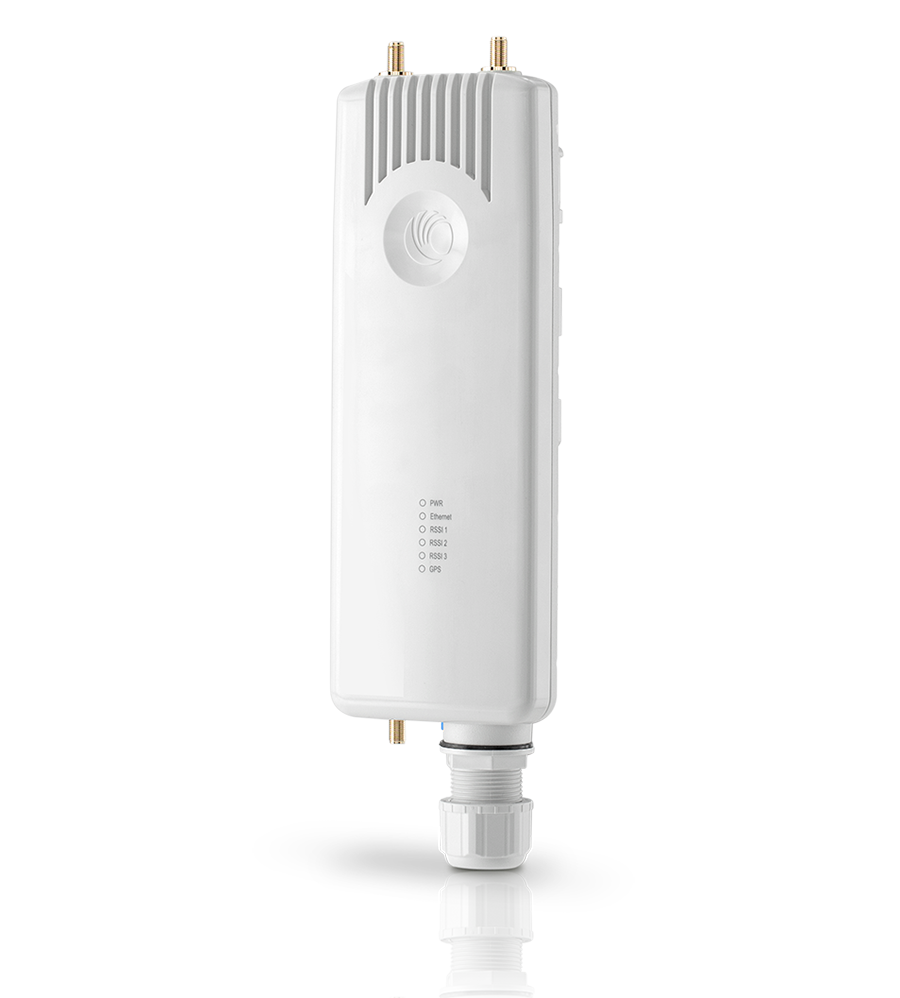

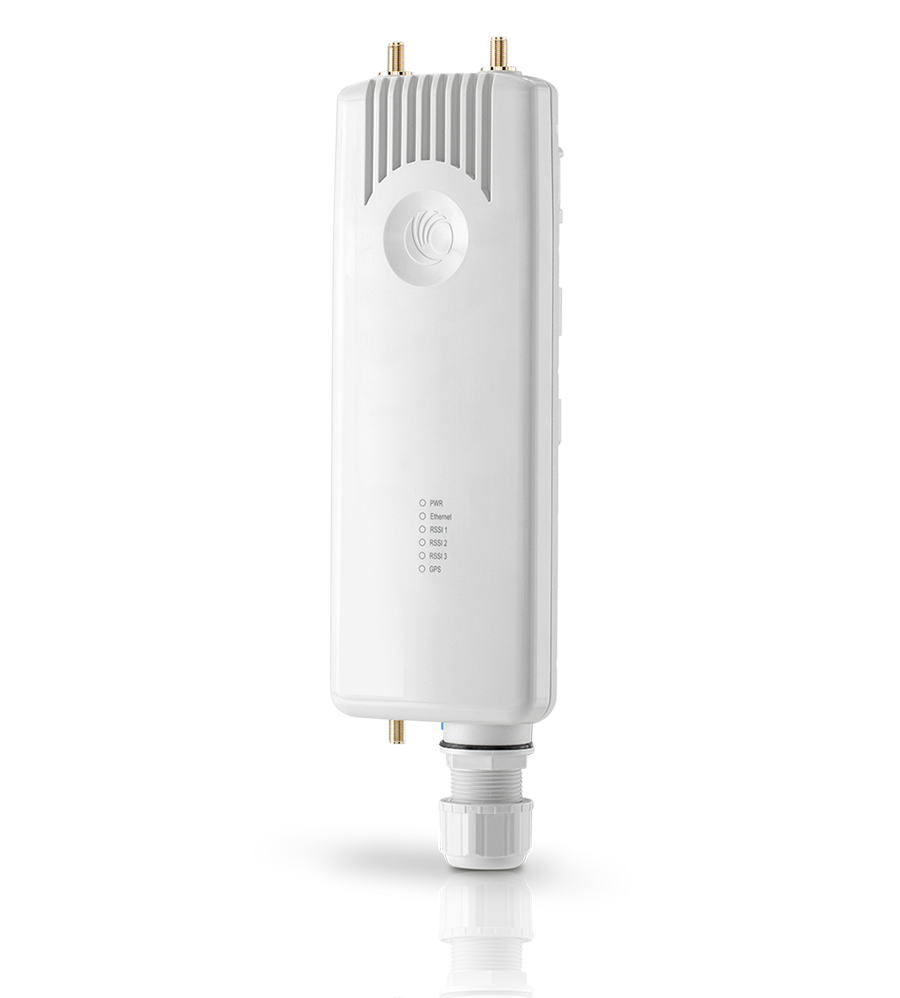

Cambium ePMP 3000L Access Point
15.658,96 ₺
KdvDahil
* 1.901,87 ₺ den
başlayan taksitlerle!
başlayan taksitlerle!
15.189,19 ₺
(%3,00 havale indirimi)
Toplu Satın Al
Değerli Müşterimiz ;
Koli Bazlı ve Toptan Olarak Almak İstediğiniz Ürünlere Bu Ekrandan Özel Teklif Alabilirsiniz.
Vereceğiniz Bilgiler Doğrultusunda Satın Alma Uzmanlarımız Size Özel Fiyat Teklifi Verecektir.
Cambium Networks'ün yeni ürünü olan ePMP 3000L Access Point, microPOP ve diğer erişim noktası uygulamaları için 802.11ac Wave 2 ile en yeni nesil teknolojidir.
ePMP 3000L verimli MAC protokolü ve gelişmiş hava adalet zamanlayıcısı ile kullanıcılara yüksek performans ve düşük tutarlı gecikme süresi sağlar.
Frekans aralığı 4910 - 5950 MHz olan ürün, GPS senkronizasyonu ile sınıfının en iyi parazit azaltma özelliğini taşır.
Detaylı bilgi için DataSheet dosyasını inceleyebilirsiniz. DataSheet
Key Advantages
- MicroPOP Applications: ePMP 3000L is ideally suited for areas with low density or small numbers of subscribers. With support for narrow-band sectors and omnis, coverage can be added exactly where needed.
- Frequency Reuse: Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.
- Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler the ePMP 3000L supports high performance and low consistent latency to subscribers.
Key Specifications
- 2X2 MIMO support with peak throughput of 600 Mbps
- 256QAM-5/6, 80 MHz support
- Supports a wide frequency range: 4910 to 5950 MHz
- Frequency re-use with GPS sync and interference mitigation
- Connectorized for use with sector antenna. Also compatible with RF Elements Twistport(tm) Adaptor for ePMP
- Cloud or on-premises network management with cnMaestro
PRODUCT
Model/Part # See table below for full set of Model and Part Numbers
SPECTRUM
Channel Spacing Configurable on 5 MHz increments
Frequency Range 4910 - 5970 MHz (exact frequencies as allowed by local regulations))
Channel Width 20 | 40 | 80 MHz
INTERFACE
MAC (Media Access Control) Layer Cambium Proprietary
Physical Layer 2X2 MIMO/OFDM
Ethernet Interfaced 100/1000BaseT, rate auto negotiated
Powering Methods Supported 29 V PoE (included)
Protocols Used IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPS, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority
PERFORMANCE
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS 9 (256 QAM 5/6)
GPS Synchronization Yes, via Internal GPS or Cambium Sync
(Internal GPS receiver also contains a patch antenna and can be used without the external puck antenna)
Quality of Service Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast,
Multicast and Station Priority, MIR/CIR support*
LINK BUDGET
Antenna 90/120 Degree 2X2 Sector Antenna (C050900D021A ) Available
Transmit Power Range 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)
PHYSICAL
Sector Antenna Connection 2 x 50 ohm, RP (Reverse Polarity) SMA
Also compatible with RF Elements Twistport™ Adaptor for ePMP
GPS Antenna Connection 1 x 50 ohm, RP (Reverse Polarity) SMA; Optional external GPS Puck Antenna avaialble model N000900L030A
Surge Suppression 1 Joule Integrated. C000000L065A - 30V Gigabit surge suppressor recommended for optimal surge protection
Environmental IP67
Temperature -22°F to +140°F (-30°C to +60°C)
Power Consumption 12 Watts
Input Voltage 30 Volts Nominal (14V to 30V Range)
Weight 0.7 kg (1.5 lbs) without brackets
Dimensions (L x W x H) 22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) without brackets
SECURITY
Encryption 128 bit AES (CCMP mode)
CERTIFICATIONS
FCCID Z8H-89FT0047
INDUSTRY CANADA 109W-0047
CE EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)**
PART NUMBER DESCRIPTION
C058910A122A ePMP 3000L 5 GHz Access Point Radio (FCC) (US cord)
C050910A124A ePMP 3000L 5 GHz Access Point Radio (IC) (Canada/US cord)
C050910A223A ePMP 3000L 5 GHz Access Point Radio (EU) (EU cord)
C050910A323A ePMP 3000L 5 GHz Access Point Radio (EU) (UK cord)
C050910A021A ePMP 3000L 5 GHz Access Point Radio (ROW) (no cord)
C050910A121A ePMP 3000L 5 GHz Access Point Radio (ROW) (US cord)
C050910A221A ePMP 3000L 5 GHz Access Point Radio (ROW) (EU cord)
C050910A321A ePMP 3000L 5 GHz Access Point Radio (ROW) (UK cord)
C050910A421A ePMP 3000L 5 GHz Access Point Radio (ROW) (India cord)
C050910A422A ePMP 3000L 5 GHz Access Point Radio (India) (India Cord)
C050910A521A ePMP 3000L 5 GHz Access Point Radio (ROW) (China cord)
C050910A621A ePMP 3000L 5 GHz Access Point Radio (ROW) (Brazil cord)
C050910A721A ePMP 3000L 5 GHz Access Point Radio (ROW) (Argentina cord)
C050910A821A ePMP 3000L 5 GHz Access Point Radio (ROW) (ANZ cord)
C050910A921A ePMP 3000L 5 GHz Access Point Radio (ROW) (South Africa cord)
C050910AZ21A ePMP 3000L 5 GHz Access Point Radio (ROW) (No PSU)
