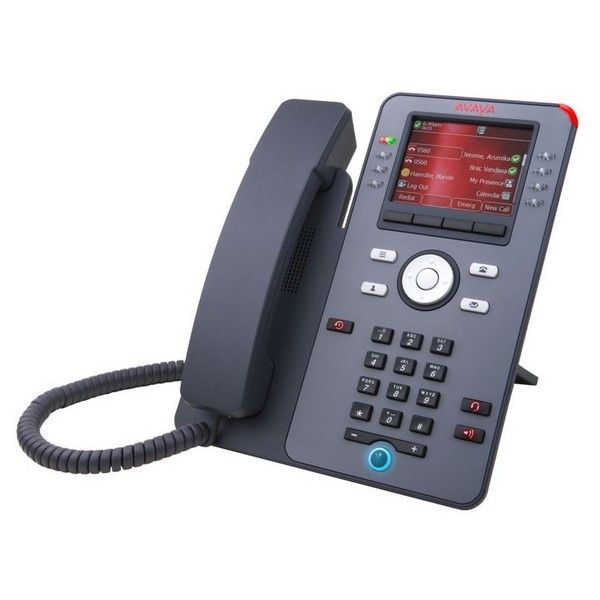

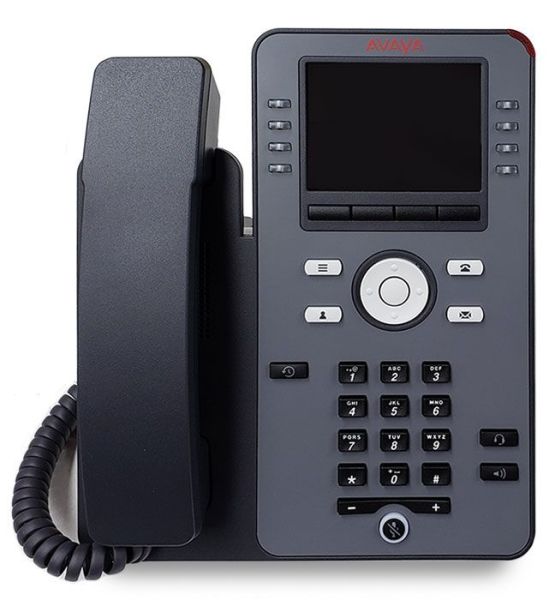

Avaya J179 IP Phone

Renkli 2.8″ x 2.1″ Ekran
SIP Yazılım Protokolü
Çift kırmızı / Yeşil LED'li 8 Düğme
4 Yazılım Tuşu
Telefon, mesajlar, kişiler, geçmiş, ev, navigasyon, küme, kulaklık, hoparlör, ses, sessiz için sabit düğmeler
24 Yönetim düğmeleri
El cihazında ve kulaklıkta geniş bant ses
Tam Çift Yönlü Hoparlör
Çift konumlu masa standı
Gigabit Ethernet 10/100/1000 hat arayüzü
2. Gigabit Ethernet arayüzü
Optional duvara montaj standı
PoE Sınıfı (IEEE 802.3af) çağrı 1 cihazı olarak kaydolur ve 802.3az'ı destekler
İsteğe bağlı AC - 5-volt adaptör

Avaya J179 Features

• 3.5” (diagonal) color display - 320 x 240 pixels
• Multi-line IP phone
• 8 line-feature keys with dual LEDs (red/green)
• 4 context sensitive soft keys
• 24 programmable button slots for call appearance and feature buttons; 3 pages of 8 (Dual Column Mode) or 6 pages of 4 (Single Column Mode)
• Supports SIP-AST for enhanced features and integration on Avaya Aura
• Supports CCMS over SIP for enhanced features and integration on IP Office
• Supports H.323 software for integration with Avaya Communication Manager and Avaya IP Office
• Wideband audio in handset and headset
• Integrated RJ9 headset port with Electronic Hook Switch (EHS)
• Supports optional J100 Wireless Module for Wi-Fi connectivity and/or Bluetooth wireless headset
• WLAN functionality requires the use of J100 SIP 2.0 or later software
• Bluetooth functionality requires the use of J100 SIP 4.0.0 or later software
• Built in volume boost control in handset for hearing impaired
• Mute key with mute alerting
• Dual 10/100/1000 Gigabit Ethernet ports to support co-located PC
• Supports up to three JBM24 Button Modules - Up to two JBM Button Modules can be powered by PoE or PoE injector; external 5V power supply (see accessory below) is required if adding more than two JBM24

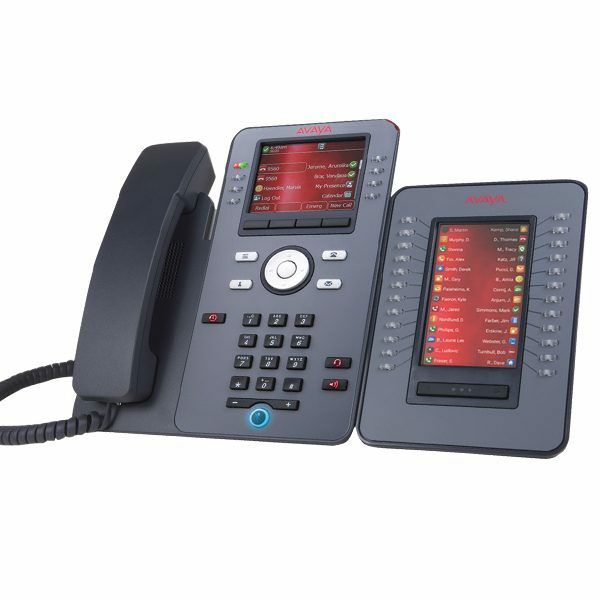

• Supports up to three JEM24 Expansion Modules - A single JEM24 Expansion Module can be powered by PoE or PoE injector; external 5V power supply (see accessory below) is required if adding more than one JEM24
• Power over Ethernet Class 1 (class 2 with JBM24/JEM24) and support for 802.3az
• Powered via Power over Ethernet (PoE), optional PoE injector, or optional 5V power supply (sold separately; see drop down option above)

Compatibility

• Avaya Aura Platform 6.3 FP4
• Avaya IP Office 11.0 or higher
• Broadsoft Broadworks R21SP1
